[Graphics] DirectX12 - Camera, 원근투영 (perspective)



Camera



• 카메라를 추가하여 Local -> World -> View -> Projection 변환을 수행한다.
• View 변환 행렬을 구할 땐 Camera Transform의 World 변환 행렬의 역행렬을 통해 구할 수 있다.
• 또 카메라에 따른 오브젝트의 이동을 구현한다.





---





Transform.h



#pragma once
#include "Component.h"

class Transform : public Component
{
public:
    Transform();
    virtual ~Transform();

    virtual void FinalUpdate() override;
    void PushData();

public:
    // Parent 기준
    const Vec3& GetLocalPosition() { return _localPosition; }
    const Vec3& GetLocalRotation() { return _localRotation; }
    const Vec3& GetLocalScale() { return _localScale; }

    const Matrix& GetLocalToWorldMatrix() { return _matWorld; }
    const Vec3& GetWorldPosition() { return _matWorld.Translation(); }

    Vec3 GetRight() { return _matWorld.Right(); }
    Vec3 GetUp() { return _matWorld.Up(); }
    Vec3 GetLook() { return _matWorld.Backward(); }

    void SetLocalPosition(const Vec3& position) { _localPosition = position; }
    void SetLocalRotation(const Vec3& rotation) { _localRotation = rotation; }
    void SetLocalScale(const Vec3& scale) { _localScale = scale; }

public:
    void SetParent(shared_ptr<Transform> parent) { _parent = parent; }
    weak_ptr<Transform> GetParent() { return _parent; }

private:
    // Parent 기준
    Vec3 _localPosition = {};
    Vec3 _localRotation = {};
    Vec3 _localScale = { 1.f, 1.f, 1.f };

    Matrix _matLocal= {};
    Matrix _matWorld = {};

    weak_ptr<Transform> _parent;
};







• _matLocal = 부모님의 Local Space로 가기위한 행렬
• _matWorld = World Space로 가기위한 행렬.
• GetWolrdPosition() = _matWorld의 _41, _42, _43값을 토대로 World Space의 Position을 구함.
• Get Right, Up, Look() = World Space를 기준으로 한 Right, Up, Look Vector를 구함.







Transform.cpp





#include "pch.h"
#include "Transform.h"
#include "Engine.h"
#include "Camera.h"

Transform::Transform() : Component(COMPONENT_TYPE::TRANSFORM)
{

}

Transform::~Transform()
{

}

void Transform::FinalUpdate()
{
    Matrix matScale = Matrix::CreateScale(_localScale);
    Matrix matRotation = Matrix::CreateRotationX(_localRotation.x);
    matRotation *= Matrix::CreateRotationY(_localRotation.y);
    matRotation *= Matrix::CreateRotationZ(_localRotation.z);
    Matrix matTranslation = Matrix::CreateTranslation(_localPosition);

    _matLocal = matScale * matRotation * matTranslation;
    _matWorld = _matLocal;

    shared_ptr<Transform> parent = GetParent().lock();
    if (parent != nullptr)
    {
        _matWorld *= parent->GetLocalToWorldMatrix();
    }
}

void Transform::PushData()
{
    Matrix matWVP = _matWorld * Camera::S_MatView * Camera::S_MatProjection;
    CONST_BUFFER(CONSTANT_BUFFER_TYPE::TRANSFORM)->PushData(&matWVP, sizeof(matWVP));
}






• FinalUpdate() = SRT 행렬을 세팅해준 뒤 Local과 World로써 저장. 만약 부모 Transform이 존재한다면 _matWorld는 부모의 World로 교체 해준다.
• PushData() = WVP 행렬을 상수버퍼에 넘겨주는 역할







Cameara.h





#pragma once
#include "Component.h"

enum class PROJECTION_TYPE
{
    PERSPECTIVE, // 원근 투영
    ORTHOGRAPHIC, // 직교 투영
};

class Camera : public Component
{
public:
    Camera();
    virtual ~Camera();

    virtual void FinalUpdate() override;
    void Render();

private:
    PROJECTION_TYPE _type = PROJECTION_TYPE::PERSPECTIVE;

    float _near = 1.f;
    float _far = 1000.f;
    float _fov = XM_PI / 3.f;
    float _scale = 1.f;

    Matrix _matView = {};
    Matrix _matProjection = {};

public:
    // TEMP
    static Matrix S_MatView;
    static Matrix S_MatProjection;
};







• near, far, fov, scale와 Camera Type을 각각 설정해준 뒤
• 자신의 View와 Projection 변환 행렬을 지닌다.







Camera.cpp





#include "pch.h"
#include "Camera.h"
#include "Transform.h"
#include "Scene.h"
#include "SceneManager.h"
#include "GameObject.h"
#include "MeshRenderer.h"
#include "Engine.h"

Matrix Camera::S_MatView;
Matrix Camera::S_MatProjection;

Camera::Camera() : Component(COMPONENT_TYPE::CAMERA)
{
}

Camera::~Camera()
{
}

void Camera::FinalUpdate()
{
    _matView = GetTransform()->GetLocalToWorldMatrix().Invert();

    float width = static_cast<float>(GEngine->GetWindow().width);
    float height = static_cast<float>(GEngine->GetWindow().height);

    if (_type == PROJECTION_TYPE::PERSPECTIVE)
        _matProjection = ::XMMatrixPerspectiveFovLH(_fov, width / height, _near, _far);
    else
        _matProjection = ::XMMatrixOrthographicLH(width * _scale, height * _scale, _near, _far);

    S_MatView = _matView;
    S_MatProjection = _matProjection;
}

void Camera::Render()
{
    shared_ptr<Scene> scene = GET_SINGLE(SceneManager)->GetActiveScene();

    // TODO : Layer 구분
    const vector<shared_ptr<GameObject>>& gameObjects = scene->GetGameObjects();

    for (auto& gameObject : gameObjects)
    {
        if (gameObject->GetMeshRenderer() == nullptr)
            continue;

        gameObject->GetMeshRenderer()->Render();
    }
}





• FinalUpdate() = Local->World 변환 행렬의 역행렬을 구해줌으로써 View 행렬을 구해준 뒤, Camera Type에 따라 Screen의 비율에 맞게 Projection 행렬을 구해준다.
• Render() = 기존 Scene에서 Update 하던 부분을 이 곳에서 처리하게 되었다. Scene에 존재하는 Object들을 MeshRenderer를 통해 Render를 해주게 되는데, MeshRenderer의 Render() 함수는 mesh의 Render와 Material의 PushData를 해주게 된다.





GameObject.cpp





#include "pch.h"
#include "GameObject.h"
#include "Transform.h"
#include "MeshRenderer.h"
#include "Camera.h"
#include "MonoBehaviour.h"

GameObject::GameObject()
{

}

GameObject::~GameObject()
{

}

void GameObject::Awake()
{
    for (shared_ptr<Component>& component : _components)
    {
        if (component)
            component->Awake();
    }

    for (shared_ptr<MonoBehaviour>& script : _scripts)
    {
        script->Awake();
    }
}

void GameObject::Start()
{
    for (shared_ptr<Component>& component : _components)
    {
        if (component)
            component->Start();
    }

    for (shared_ptr<MonoBehaviour>& script : _scripts)
    {
        script->Start();
    }
}

void GameObject::Update()
{
    for (shared_ptr<Component>& component : _components)
    {
        if (component)
            component->Update();
    }

    for (shared_ptr<MonoBehaviour>& script : _scripts)
    {
        script->Update();
    }
}

void GameObject::LateUpdate()
{
    for (shared_ptr<Component>& component : _components)
    {
        if (component)
            component->LateUpdate();
    }

    for (shared_ptr<MonoBehaviour>& script : _scripts)
    {
        script->LateUpdate();
    }
}

void GameObject::FinalUpdate()
{
    for (shared_ptr<Component>& component : _components)
    {
        if (component)
            component->FinalUpdate();
    }
}

shared_ptr<Component> GameObject::GetFixedComponent(COMPONENT_TYPE type)
{
    uint8 index = static_cast<uint8>(type);
    assert(index < FIXED_COMPONENT_COUNT);
    return _components[index];
}

shared_ptr<Transform> GameObject::GetTransform()
{
    shared_ptr<Component> component = GetFixedComponent(COMPONENT_TYPE::TRANSFORM);
    return static_pointer_cast<Transform>(component);
}

shared_ptr<MeshRenderer> GameObject::GetMeshRenderer()
{
    shared_ptr<Component> component = GetFixedComponent(COMPONENT_TYPE::MESH_RENDERER);
    return static_pointer_cast<MeshRenderer>(component);
}

shared_ptr<Camera> GameObject::GetCamera()
{
    shared_ptr<Component> component = GetFixedComponent(COMPONENT_TYPE::CAMERA);
    return static_pointer_cast<Camera>(component);
}

void GameObject::AddComponent(shared_ptr<Component> component)
{
    component->SetGameObject(shared_from_this());

    uint8 index = static_cast<uint8>(component->GetType());
    if (index < FIXED_COMPONENT_COUNT)
    {
        _components[index] = component;
    }
    else
    {
        _scripts.push_back(dynamic_pointer_cast<MonoBehaviour>(component));
    }
}





• GetFixedComponent() = Component Type을 입력하면 _components 배열에서 해당 Type의 Component Index를 참조하여 return 해준다.
• GetTransform , MeshRenderer, Camera = 각  Component를 GetFixedComponent()를 활용해서 return 해주는 역할.





SceneManager.cpp





#include "pch.h"
#include "SceneManager.h"
#include "Scene.h"

#include "Engine.h"
#include "Material.h"
#include "GameObject.h"
#include "MeshRenderer.h"
#include "Transform.h"
#include "Camera.h"

#include "TestCameraScript.h"

void SceneManager::Update()
{
    if (_activeScene == nullptr)
        return;

    _activeScene->Update();
    _activeScene->LateUpdate();
    _activeScene->FinalUpdate();
}

// TEMP
void SceneManager::Render()
{
    if (_activeScene == nullptr)
        return;

    const vector<shared_ptr<GameObject>>& gameObjects = _activeScene->GetGameObjects();
    for (auto& gameObject : gameObjects)
    {
        if (gameObject->GetCamera() == nullptr)
            continue;

        gameObject->GetCamera()->Render();
    }
}

void SceneManager::LoadScene(wstring sceneName)
{
    // TODO : 기존 Scene 정리
    // TODO : 파일에서 Scene 정보 로드

    _activeScene = LoadTestScene();

    _activeScene->Awake();
    _activeScene->Start();
}

shared_ptr<Scene> SceneManager::LoadTestScene()
{
    shared_ptr<Scene> scene = make_shared<Scene>();

#pragma region TestObject
    shared_ptr<GameObject> gameObject = make_shared<GameObject>();

    vector<Vertex> vec(4);
    vec[0].pos = Vec3(-0.5f, 0.5f, 0.5f);
    vec[0].color = Vec4(1.f, 0.f, 0.f, 1.f);
    vec[0].uv = Vec2(0.f, 0.f);
    vec[1].pos = Vec3(0.5f, 0.5f, 0.5f);
    vec[1].color = Vec4(0.f, 1.f, 0.f, 1.f);
    vec[1].uv = Vec2(1.f, 0.f);
    vec[2].pos = Vec3(0.5f, -0.5f, 0.5f);
    vec[2].color = Vec4(0.f, 0.f, 1.f, 1.f);
    vec[2].uv = Vec2(1.f, 1.f);
    vec[3].pos = Vec3(-0.5f, -0.5f, 0.5f);
    vec[3].color = Vec4(0.f, 1.f, 0.f, 1.f);
    vec[3].uv = Vec2(0.f, 1.f);

    vector<uint32> indexVec;
    {
        indexVec.push_back(0);
        indexVec.push_back(1);
        indexVec.push_back(2);
    }
    {
        indexVec.push_back(0);
        indexVec.push_back(2);
        indexVec.push_back(3);
    }

    gameObject->AddComponent(make_shared<Transform>());
    shared_ptr<Transform> transform = gameObject->GetTransform();
    transform->SetLocalPosition(Vec3(0.f, 100.f, 200.f));
    transform->SetLocalScale(Vec3(100.f, 100.f, 1.f));

    shared_ptr<MeshRenderer> meshRenderer = make_shared<MeshRenderer>();
    {
        shared_ptr<Mesh> mesh = make_shared<Mesh>();
        mesh->Init(vec, indexVec);
        meshRenderer->SetMesh(mesh);
    }
    {
        shared_ptr<Shader> shader = make_shared<Shader>();
        shared_ptr<Texture> texture = make_shared<Texture>();
        shader->Init(L"..\\Resources\\Shader\\default.hlsli");
        texture->Init(L"..\\Resources\\Texture\\veigar.jpg");
        shared_ptr<Material> material = make_shared<Material>();
        material->SetShader(shader);
        material->SetFloat(0, 0.3f);
        material->SetFloat(1, 0.4f);
        material->SetFloat(2, 0.3f);
        material->SetTexture(0, texture);
        meshRenderer->SetMaterial(material);
    }
    gameObject->AddComponent(meshRenderer);
    scene->AddGameObject(gameObject);
#pragma endregion

#pragma region Camera
    shared_ptr<GameObject> camera = make_shared<GameObject>();
    camera->AddComponent(make_shared<Transform>());
    camera->AddComponent(make_shared<Camera>()); // Near=1, Far=1000, FOV=45도
    camera->AddComponent(make_shared<TestCameraScript>());
    camera->GetTransform()->SetLocalPosition(Vec3(0.f, 100.f, 0.f));
    scene->AddGameObject(camera);
#pragma endregion

    return scene;
}





• Render() = 렌더링을 위한 임시적인 함수로, 활성화된 scene의 object들을 받은 뒤 camera의 render를 실행해주는 부분이다.
• LoadTestScene() = 우선 Object를 세팅할 때 Transform을 수동으로 생성하여 LocalPos와 Scale을 세팅해주는 부분이 추가되었다. 또 camera라는 object로써 생성해주어 transform, camera, script를 component로써 부착해주었으며 Post를 변경하여 Scene에 camera object를 추가해준다.







Default Shader






cbuffer TRANSFORM_PARAMS : register(b0)
{
    row_major matrix matWVP;
};

cbuffer MATERIAL_PARAMS : register(b1)
{
    int int_0;
    int int_1;
    int int_2;
    int int_3;
    int int_4;
    float float_0;
    float float_1;
    float float_2;
    float float_3;
    float float_4;
};

Texture2D tex_0 : register(t0);
Texture2D tex_1 : register(t1);
Texture2D tex_2 : register(t2);
Texture2D tex_3 : register(t3);
Texture2D tex_4 : register(t4);

SamplerState sam_0 : register(s0);

struct VS_IN
{
    float3 pos : POSITION;
    float4 color : COLOR;
    float2 uv : TEXCOORD;
};

struct VS_OUT
{
    float4 pos : SV_Position;
    float4 color : COLOR;
    float2 uv : TEXCOORD;
};

VS_OUT VS_Main(VS_IN input)
{
    VS_OUT output = (VS_OUT)0;

    output.pos = mul(float4(input.pos, 1.f), matWVP);
    output.color = input.color;
    output.uv = input.uv;

    return output;
}

float4 PS_Main(VS_OUT input) : SV_Target
{
    float4 color = tex_0.Sample(sam_0, input.uv);
    return color;
}





• b0 레지스터의 상수버퍼가 기존의 float4가 아닌 WVP 행렬로 교체되었다.
• VS에서의 Pos 변경이 기존과는 달리 Input Pos에 WVP 행렬을 곱해주는 것을 볼 수 있다.







TestCameraScript.cpp





#include "pch.h"
#include "TestCameraScript.h"
#include "Transform.h"
#include "Camera.h"
#include "GameObject.h"
#include "Input.h"
#include "Timer.h"

TestCameraScript::TestCameraScript()
{
}

TestCameraScript::~TestCameraScript()
{
}

void TestCameraScript::LateUpdate()
{
    Vec3 pos = GetTransform()->GetLocalPosition();

    if (INPUT->GetButton(KEY_TYPE::W))
        pos += GetTransform()->GetLook() * _speed * DELTA_TIME;

    if (INPUT->GetButton(KEY_TYPE::S))
        pos -= GetTransform()->GetLook() * _speed * DELTA_TIME;

    if (INPUT->GetButton(KEY_TYPE::A))
        pos -= GetTransform()->GetRight() * _speed * DELTA_TIME;

    if (INPUT->GetButton(KEY_TYPE::D))
        pos += GetTransform()->GetRight() * _speed * DELTA_TIME;

    if (INPUT->GetButton(KEY_TYPE::Q))
    {
        Vec3 rotation = GetTransform()->GetLocalRotation();
        rotation.x += DELTA_TIME * 0.5f;
        GetTransform()->SetLocalRotation(rotation);
    }

    if (INPUT->GetButton(KEY_TYPE::E))
    {
        Vec3 rotation = GetTransform()->GetLocalRotation();
        rotation.x -= DELTA_TIME * 0.5f;
        GetTransform()->SetLocalRotation(rotation);
    }

    GetTransform()->SetLocalPosition(pos);
}





• MonoBehaviour를 상속받았으며 Input에 따라 카메라의 이동이나, 회전을 시켜주는 script.
• 앞뒤좌위 움직임이 가능하며, 고개를 들거나 숙이는것과 같이 x축에 대한 회전(Pitch)이 가능하다.





---





결과

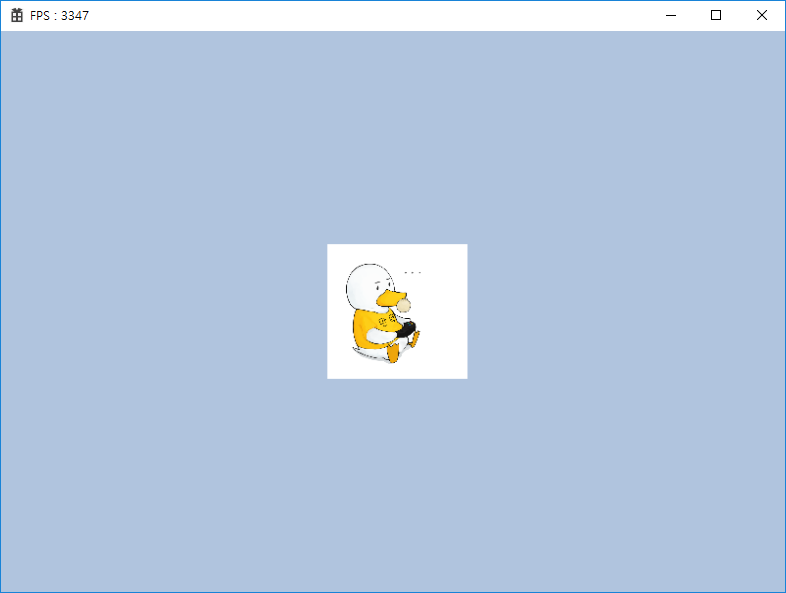

기본 실행화면

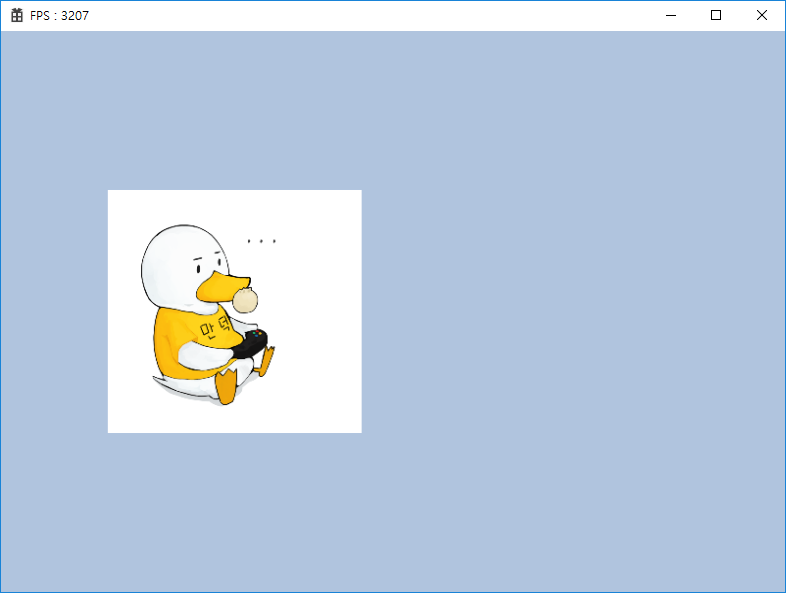

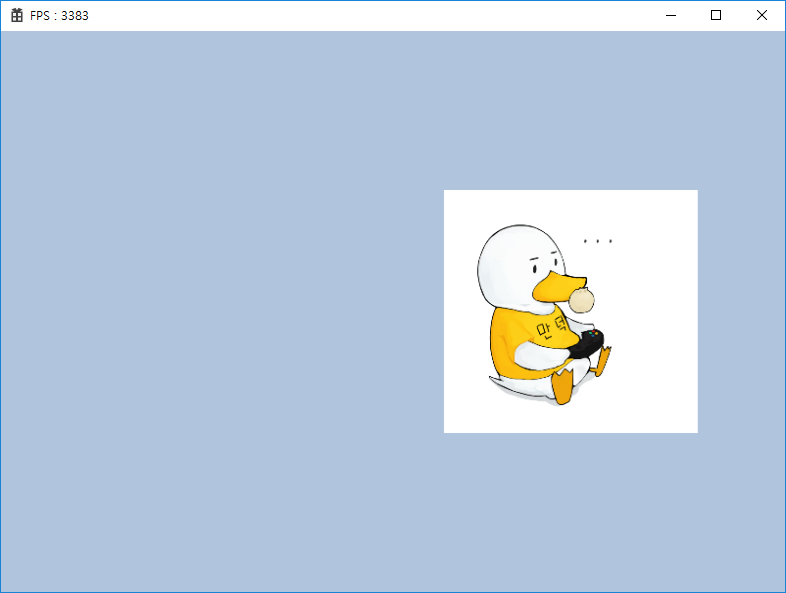

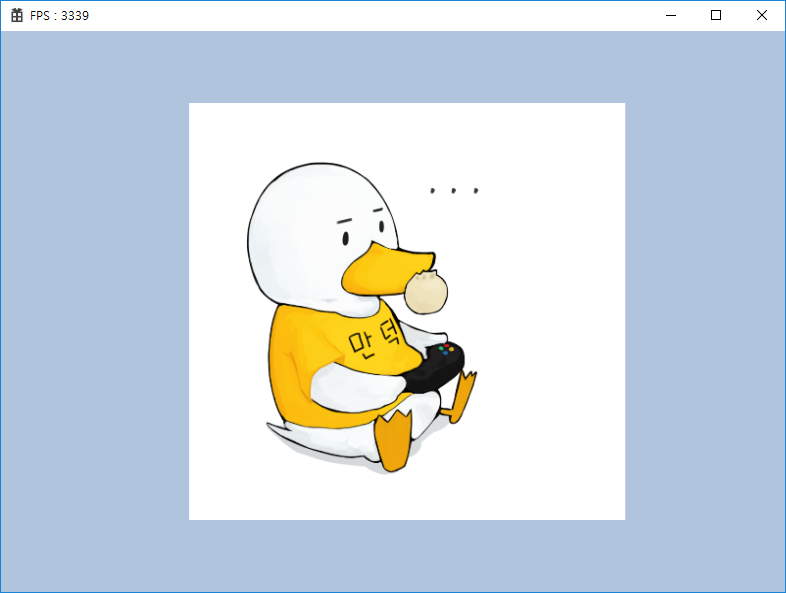

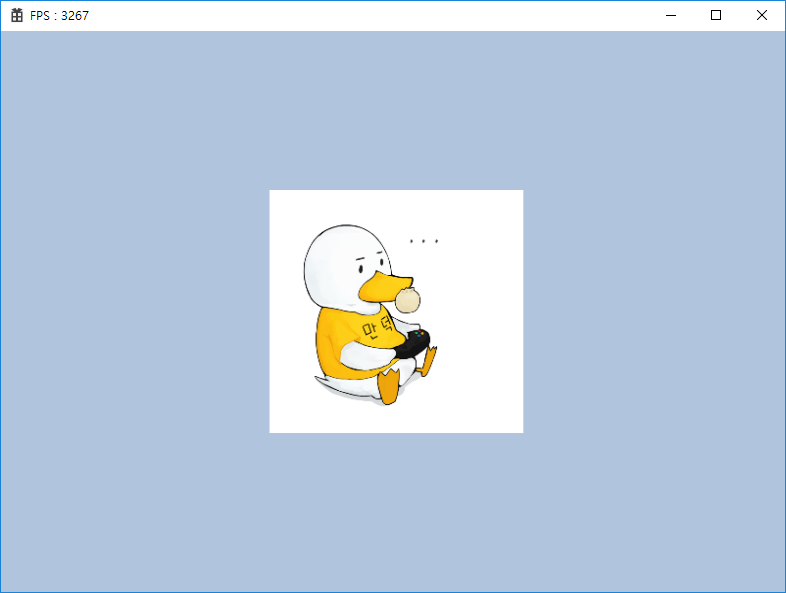

Translation



W // 앞

S // 뒤

A // 좌

D // 우





• WASD 키 입력에 따라 앞, 뒤, 좌, 우로 카메라 이동이 가능하며, 카메라 이동의 반대로 오브젝트가 이동한다는것을 확인할 수 있다.

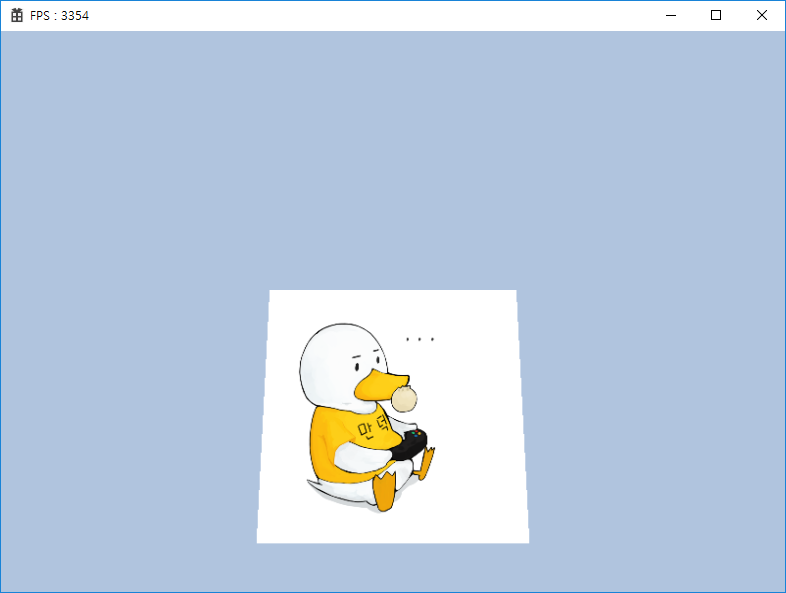

Rotation



Q

E



• Q와 E 입력에 따라 Pitch 회전이 가능함을 볼 수 있다.
