[Graphics] DirectX12 - Resources (Cube & Sphere)



Resources



• Resources를 통해서 그리고자 하는 물체의 정보를 저장하여 사용
• 물체의 정보를 넘겨주어 같은 물체를 대량으로 그릴 때 유용하다.
• 구와 큐브에 대한 Vertex, Index Buffer를 설정하고 Resources에 Add하여 Mesh를 입력한다.







---





Object.h





#pragma once

enum class OBJECT_TYPE : uint8
{
    NONE,
    GAMEOBJECT, // PREFAB
    COMPONENT,
    MATERIAL,
    MESH,
    SHADER,
    TEXTURE,

    END
};

enum
{
    OBJECT_TYPE_COUNT = static_cast<uint8>(OBJECT_TYPE::END)
};

class Object
{
public:
    Object(OBJECT_TYPE type);
    virtual ~Object();

    OBJECT_TYPE GetType() { return _objectType; }

    void SetName(const wstring& name) { _name = name; }
    const wstring& GetName() { return _name; }

    // TODO : Instantiate

protected:
    friend class Resources;
    virtual void Load(const wstring& path) { }
    virtual void Save(const wstring& path) { }

protected:
    OBJECT_TYPE _objectType = OBJECT_TYPE::NONE;
    wstring _name;
};







• Object들을 관리하기 위한 class. ( GAMEOBJECT, COMPONENT, MATERIAL, MESH, SHADER, TEXTURE) 등
• Obj Type과 Name을 저장하거나 Get할 수 있으며 FriendClass인 Resources도 접근이 가능하다.





Resources.h





#pragma once

#include "GameObject.h"
#include "Material.h"
#include "Mesh.h"
#include "Shader.h"
#include "Texture.h"

class Resources
{
    DECLARE_SINGLE(Resources);

public:
    template<typename T>
    shared_ptr<T> Load(const wstring& key, const wstring& path);

    template<typename T>
    bool Add(const wstring& key, shared_ptr<T> object);

    template<typename T>
    shared_ptr<T> Get(const wstring& Key);

    template<typename T>
    OBJECT_TYPE GetObjectType();

    shared_ptr<Mesh> LoadCubeMesh();
    shared_ptr<Mesh> LoadSphereMesh();

private:
    using KeyObjMap = std::map<wstring/*key*/, shared_ptr<Object>>;
    array<KeyObjMap, OBJECT_TYPE_COUNT> _resources;
};

template<typename T>
inline shared_ptr<T> Resources::Load(const wstring& key, const wstring& path)
{
    OBJECT_TYPE objectType = GetObjectType<T>();
    KeyObjMap& keyObjMap = _resources[static_cast<uint8>(objectType)];

    auto findIt = keyObjMap.find(key);
    if (findIt != keyObjMap.end())
        return static_pointer_cast<T>(findIt->second);

    shared_ptr<T> object = make_shared<T>();
    object->Load(path);
    keyObjMap[key] = object;

    return object;
}

template<typename T>
bool Resources::Add(const wstring& key, shared_ptr<T> object)
{
    OBJECT_TYPE objectType = GetObjectType<T>();
    KeyObjMap& keyObjMap = _resources[static_cast<uint8>(objectType)];

    auto findIt = keyObjMap.find(key);
    if (findIt != keyObjMap.end())
        return false;

    keyObjMap[key] = object;

    return true;
}

template<typename T>
shared_ptr<T> Resources::Get(const wstring& key)
{
    OBJECT_TYPE objectType = GetObjectType<T>();
    KeyObjMap& keyObjMap = _resources[static_cast<uint8>(objectType)];

    auto findIt = keyObjMap.find(key);
    if (findIt != keyObjMap.end())
        return static_pointer_cast<T>(findIt->second);

    return nullptr;
}

template<typename T>
inline OBJECT_TYPE Resources::GetObjectType()
{
    if (std::is_same_v<T, GameObject>)
        return OBJECT_TYPE::GAMEOBJECT;
    else if (std::is_same_v<T, Material>)
        return OBJECT_TYPE::MATERIAL;
    else if (std::is_same_v<T, Mesh>)
        return OBJECT_TYPE::MESH;
    else if (std::is_same_v<T, Shader>)
        return OBJECT_TYPE::SHADER;
    else if (std::is_same_v<T, Texture>)
        return OBJECT_TYPE::TEXTURE;
    else if (std::is_convertible_v<T, Component>)
        return OBJECT_TYPE::COMPONENT;
    else
        return OBJECT_TYPE::NONE;
}





• Singleton 으로 선언되었다.
• KeyObjMap = Key에 따른 Object를 저장하기 위한 Map
• _resources =  Obj Type에 따라서 KeyObjMap을 관리하기 위한 Array
• Load() = Template를 통해 Type, 매개변수를 통해Key, 경로를 받아 오브젝트 파일을 Load해준 뒤 return 해주는 함수.
• Add() = Template를 통해 Type, 매개변수를 통해Key, object를 받아 object를
• Get() = Type Map 내에 존재하는 Obj를 찾아 반환해주는 함수.
• GetObjectType() = typename에 맞는 type을 반환해주는 함수.





Resources.Cpp





#include "pch.h"
#include "Resources.h"


shared_ptr<Mesh> Resources::LoadCubeMesh()
{
    shared_ptr<Mesh> findMesh = Get<Mesh>(L"Cube");
    if (findMesh)
        return findMesh;

    float w2 = 0.5f;
    float h2 = 0.5f;
    float d2 = 0.5f;

    vector<Vertex> vec(24);

    // 앞면
    vec[0] = Vertex(Vec3(-w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[1] = Vertex(Vec3(-w2, +h2, -d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[2] = Vertex(Vec3(+w2, +h2, -d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[3] = Vertex(Vec3(+w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 0.0f, -1.0f), Vec3(1.0f, 0.0f, 0.0f));
    // 뒷면
    vec[4] = Vertex(Vec3(-w2, -h2, +d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[5] = Vertex(Vec3(+w2, -h2, +d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[6] = Vertex(Vec3(+w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[7] = Vertex(Vec3(-w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f));
    // 윗면
    vec[8] = Vertex(Vec3(-w2, +h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[9] = Vertex(Vec3(-w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[10] = Vertex(Vec3(+w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
    vec[11] = Vertex(Vec3(+w2, +h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, 1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f));
    // 아랫면
    vec[12] = Vertex(Vec3(-w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[13] = Vertex(Vec3(+w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[14] = Vertex(Vec3(+w2, -h2, +d2), Vec2(0.0f, 0.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
    vec[15] = Vertex(Vec3(-w2, -h2, +d2), Vec2(1.0f, 0.0f), Vec3(0.0f, -1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f));
    // 왼쪽면
    vec[16] = Vertex(Vec3(-w2, -h2, +d2), Vec2(0.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
    vec[17] = Vertex(Vec3(-w2, +h2, +d2), Vec2(0.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
    vec[18] = Vertex(Vec3(-w2, +h2, -d2), Vec2(1.0f, 0.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
    vec[19] = Vertex(Vec3(-w2, -h2, -d2), Vec2(1.0f, 1.0f), Vec3(-1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, -1.0f));
    // 오른쪽면
    vec[20] = Vertex(Vec3(+w2, -h2, -d2), Vec2(0.0f, 1.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
    vec[21] = Vertex(Vec3(+w2, +h2, -d2), Vec2(0.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
    vec[22] = Vertex(Vec3(+w2, +h2, +d2), Vec2(1.0f, 0.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));
    vec[23] = Vertex(Vec3(+w2, -h2, +d2), Vec2(1.0f, 1.0f), Vec3(1.0f, 0.0f, 0.0f), Vec3(0.0f, 0.0f, 1.0f));

    vector<uint32> idx(36);

    // 앞면
    idx[0] = 0; idx[1] = 1; idx[2] = 2;
    idx[3] = 0; idx[4] = 2; idx[5] = 3;
    // 뒷면
    idx[6] = 4; idx[7] = 5; idx[8] = 6;
    idx[9] = 4; idx[10] = 6; idx[11] = 7;
    // 윗면
    idx[12] = 8; idx[13] = 9; idx[14] = 10;
    idx[15] = 8; idx[16] = 10; idx[17] = 11;
    // 아랫면
    idx[18] = 12; idx[19] = 13; idx[20] = 14;
    idx[21] = 12; idx[22] = 14; idx[23] = 15;
    // 왼쪽면
    idx[24] = 16; idx[25] = 17; idx[26] = 18;
    idx[27] = 16; idx[28] = 18; idx[29] = 19;
    // 오른쪽면
    idx[30] = 20; idx[31] = 21; idx[32] = 22;
    idx[33] = 20; idx[34] = 22; idx[35] = 23;

    shared_ptr<Mesh> mesh = make_shared<Mesh>();
    mesh->Init(vec, idx);
    Add(L"Cube", mesh);

    return mesh;
}

shared_ptr<Mesh> Resources::LoadSphereMesh()
{
    shared_ptr<Mesh> findMesh = Get<Mesh>(L"Sphere");
    if (findMesh)
        return findMesh;

    float radius = 0.5f; // 구의 반지름
    uint32 stackCount = 20; // 가로 분할
    uint32 sliceCount = 20; // 세로 분할

    vector<Vertex> vec;

    Vertex v;

    // 북극
    v.pos = Vec3(0.0f, radius, 0.0f);
    v.uv = Vec2(0.5f, 0.0f);
    v.normal = v.pos;
    v.normal.Normalize();
    v.tangent = Vec3(1.0f, 0.0f, 1.0f);
    vec.push_back(v);

    float stackAngle = XM_PI / stackCount;
    float sliceAngle = XM_2PI / sliceCount;

    float deltaU = 1.f / static_cast<float>(sliceCount);
    float deltaV = 1.f / static_cast<float>(stackCount);

    // 고리마다 돌면서 정점을 계산한다 (북극/남극 단일점은 고리가 X)
    for (uint32 y = 1; y <= stackCount - 1; ++y)
    {
        float phi = y * stackAngle;

        // 고리에 위치한 정점
        for (uint32 x = 0; x <= sliceCount; ++x)
        {
            float theta = x * sliceAngle;

            v.pos.x = radius * sinf(phi) * cosf(theta);
            v.pos.y = radius * cosf(phi);
            v.pos.z = radius * sinf(phi) * sinf(theta);

            v.uv = Vec2(deltaU * x, deltaV * y);

            v.normal = v.pos;
            v.normal.Normalize();

            v.tangent.x = -radius * sinf(phi) * sinf(theta);
            v.tangent.y = 0.0f;
            v.tangent.z = radius * sinf(phi) * cosf(theta);
            v.tangent.Normalize();

            vec.push_back(v);
        }
    }

    // 남극
    v.pos = Vec3(0.0f, -radius, 0.0f);
    v.uv = Vec2(0.5f, 1.0f);
    v.normal = v.pos;
    v.normal.Normalize();
    v.tangent = Vec3(1.0f, 0.0f, 0.0f);
    vec.push_back(v);

    vector<uint32> idx(36);

    // 북극 인덱스
    for (uint32 i = 0; i <= sliceCount; ++i)
    {
        //  [0]
        //   |  \
        //  [i+1]-[i+2]
        idx.push_back(0);
        idx.push_back(i + 2);
        idx.push_back(i + 1);
    }

    // 몸통 인덱스
    uint32 ringVertexCount = sliceCount + 1;
    for (uint32 y = 0; y < stackCount - 2; ++y)
    {
        for (uint32 x = 0; x < sliceCount; ++x)
        {
            //  [y, x]-[y, x+1]
            //  |        /
            //  [y+1, x]
            idx.push_back(1 + (y) * ringVertexCount + (x));
            idx.push_back(1 + (y) * ringVertexCount + (x + 1));
            idx.push_back(1 + (y + 1) * ringVertexCount + (x));
            //         [y, x+1]
            //         /      |
            //  [y+1, x]-[y+1, x+1]
            idx.push_back(1 + (y + 1) * ringVertexCount + (x));
            idx.push_back(1 + (y) * ringVertexCount + (x + 1));
            idx.push_back(1 + (y + 1) * ringVertexCount + (x + 1));
        }
    }

    // 남극 인덱스
    uint32 bottomIndex = static_cast<uint32>(vec.size()) - 1;
    uint32 lastRingStartIndex = bottomIndex - ringVertexCount;
    for (uint32 i = 0; i < sliceCount; ++i)
    {
        //  [last+i]-[last+i+1]
        //  |      /
        //  [bottom]
        idx.push_back(bottomIndex);
        idx.push_back(lastRingStartIndex + i);
        idx.push_back(lastRingStartIndex + i + 1);
    }

    shared_ptr<Mesh> mesh = make_shared<Mesh>();
    mesh->Init(vec, idx);
    Add(L"Sphere", mesh);

    return mesh;
}





• LoadCubeMesh() = Mesh Type의 Cube가 있는지 확인한 뒤 있으면 반환하고, 없으면 Cube Vertex와 Index를 설정한 뒤 하고 Add() 해주며 mesh를 반환한다.
• LoadSphereMesh() = LoadCubeMesh()와 똑같이 동작하지만, 구체를 생성하는 알고리즘에 따라서 mesh 생성한다.
• 각 vertex를 설정할 때 pos, uv, normal, tangent를 인자로 보내주고 있는데, normal과 tangent에 관한 부분은 다음 내용인 lighting을 할 떄 사용된다.





SceneManager.Cpp





#include "pch.h"
#include "SceneManager.h"
#include "Scene.h"

#include "Engine.h"
#include "Material.h"
#include "GameObject.h"
#include "MeshRenderer.h"
#include "Transform.h"
#include "Camera.h"

#include "TestCameraScript.h"
#include "Resources.h"

void SceneManager::Update()
{
    if (_activeScene == nullptr)
        return;

    _activeScene->Update();
    _activeScene->LateUpdate();
    _activeScene->FinalUpdate();
}

// TEMP
void SceneManager::Render()
{
    if (_activeScene == nullptr)
        return;

    const vector<shared_ptr<GameObject>>& gameObjects = _activeScene->GetGameObjects();
    for (auto& gameObject : gameObjects)
    {
        if (gameObject->GetCamera() == nullptr)
            continue;

        gameObject->GetCamera()->Render();
    }
}

void SceneManager::LoadScene(wstring sceneName)
{
    // TODO : 기존 Scene 정리
    // TODO : 파일에서 Scene 정보 로드

    _activeScene = LoadTestScene();

    _activeScene->Awake();
    _activeScene->Start();
}

shared_ptr<Scene> SceneManager::LoadTestScene()
{
    shared_ptr<Scene> scene = make_shared<Scene>();

#pragma region Camera
    shared_ptr<GameObject> camera = make_shared<GameObject>();
    camera->AddComponent(make_shared<Transform>());
    camera->AddComponent(make_shared<Camera>()); // Near=1, Far=1000, FOV=45도
    camera->AddComponent(make_shared<TestCameraScript>());
    camera->GetTransform()->SetLocalPosition(Vec3(0.f, 100.f, 0.f));
    scene->AddGameObject(camera);
#pragma endregion

#pragma region Sphere
    {
        shared_ptr<GameObject> sphere = make_shared<GameObject>();
        sphere->AddComponent(make_shared<Transform>());
        sphere->GetTransform()->SetLocalScale(Vec3(100.f, 100.f, 100.f));
        sphere->GetTransform()->SetLocalPosition(Vec3(0.f, 100.f, 200.f));
        shared_ptr<MeshRenderer> meshRenderer = make_shared<MeshRenderer>();
        {
            shared_ptr<Mesh> sphereMesh = GET_SINGLE(Resources)->LoadSphereMesh();
            meshRenderer->SetMesh(sphereMesh);
        }
        {
            shared_ptr<Shader> shader = make_shared<Shader>();
            shared_ptr<Texture> texture = make_shared<Texture>();
            shader->Init(L"..\\Resources\\Shader\\default.hlsli");
            texture->Init(L"..\\Resources\\Texture\\Manduk.png");
            shared_ptr<Material> material = make_shared<Material>();
            material->SetShader(shader);
            material->SetTexture(0, texture);
            meshRenderer->SetMaterial(material);
        }
        sphere->AddComponent(meshRenderer);
        scene->AddGameObject(sphere);
    }
#pragma endregion

#pragma region Cube
    {
        shared_ptr<GameObject> sphere = make_shared<GameObject>();
        sphere->AddComponent(make_shared<Transform>());
        sphere->GetTransform()->SetLocalScale(Vec3(100.f, 100.f, 100.f));
        sphere->GetTransform()->SetLocalPosition(Vec3(150.f, 100.f, 200.f));
        shared_ptr<MeshRenderer> meshRenderer = make_shared<MeshRenderer>();
        {
            shared_ptr<Mesh> sphereMesh = GET_SINGLE(Resources)->LoadCubeMesh();
            meshRenderer->SetMesh(sphereMesh);
        }
        {
            shared_ptr<Shader> shader = make_shared<Shader>();
            shared_ptr<Texture> texture = make_shared<Texture>();
            shader->Init(L"..\\Resources\\Shader\\default.hlsli");
            texture->Init(L"..\\Resources\\Texture\\Manduk.png");
            shared_ptr<Material> material = make_shared<Material>();
            material->SetShader(shader);
            material->SetTexture(0, texture);
            meshRenderer->SetMaterial(material);
        }
        sphere->AddComponent(meshRenderer);
        scene->AddGameObject(sphere);
    }
#pragma endregion

    return scene;
}





• 우선 Sphere 부분을 보면 GameObject로써 생성한 뒤 mesh를 Resources를 통해 세팅한 뒤 오브젝트를 Scene에 추가해주는 모습을 확인할 수 있으며, Cube도 같은 방식으로 추가되는 것을 확인할 수 있다.





---

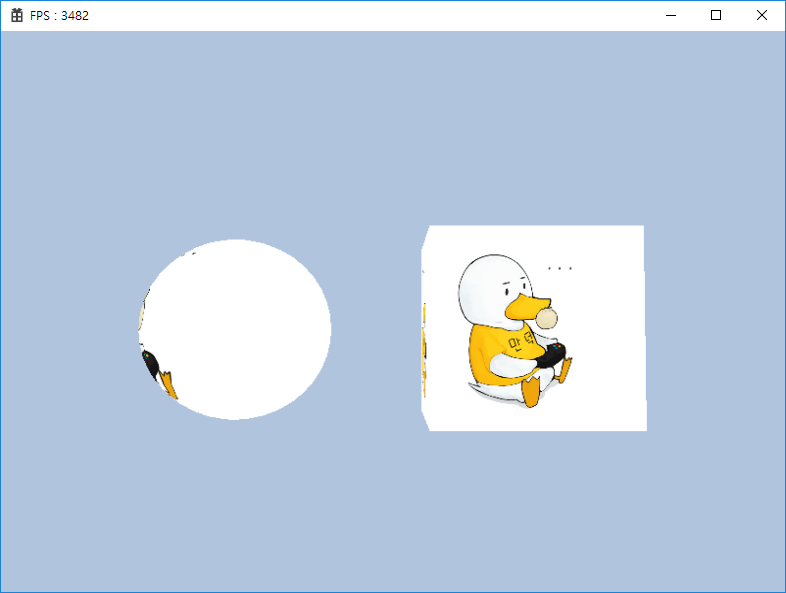

결과







SceneManager에서 Resources를 통해 생성한 구체와 육면체가 잘 생성되었음을 볼 수 있으며,

생성한 mesh에 texture 또한 잘 입혀서 출력되는 모습을 확인할 수 있아.
